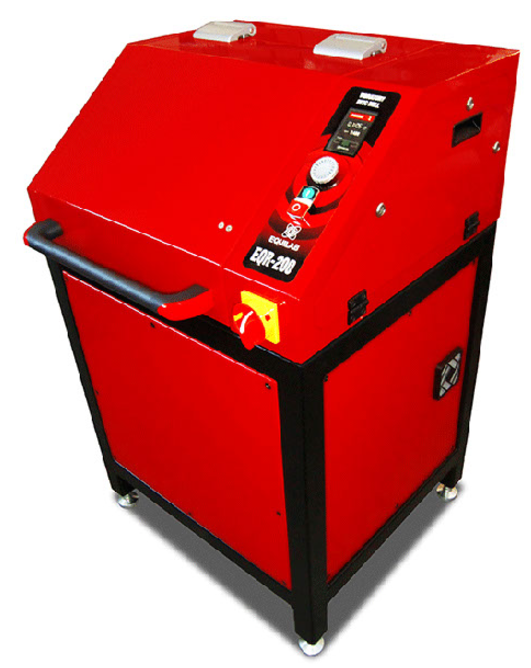

EQR-200 Vibratory Disc Mill
The EQR-200 Vibratory Disc Mill is a specialized grinding mill designed to achieve analytical grain sizes across a diverse array of samples, including glass, soil, slags, metallic oxides, ferroalloys, cements, and ceramic materials, among others. This mill can efficiently grind various materials, ranging from semi-soft to the hardest, as well as fragile or fibrous substances. All operations can be managed through a full-color digital display. Its user-friendly design and the durability of its components render this mill nearly maintenance-free.
Operated by a microprocessor, it features five programs that can be adjusted via the digital 3.5” full-color display, allowing you to set various times and speeds for the milling operation. Simply slide the jar containing the sample into position, close the door, select one of the programs, and press the on button. Once the designated time has been completed, the mill will automatically stop, allowing you to open the door and retrieve the jar with the sample. To monitor the remaining milling time, you can easily glance at the digital screen.
- Easy to use
- Secure mechanism with a locking system to prevent the door from opening until the motor has completely stopped
- Quiet operation due to specialized acoustic insulation
- Steady operation with a frequency converter that enables gradual acceleration and deceleration
- LCD display for managing all parameters
- Five operational programs available
- Quick and simple acquisition of an analytical grain size measurement in seconds
- User-friendly operation
- Capable of grinding a wide variety of materials
- Fast and simple interchange of milling jars
- Soundproof and anti-vibration enclosure to minimize noise and vibrations
- Most favorable quality-to-price ratio on the market
- Grinding process occurs through impact and friction between the blocks and the jar, with the mass of the blocks contributing to short milling durations
Glass, soil, by products of smelting, coal, raw material residue, carbon-rich material, metal oxides, alloys of iron, binding agents, ceramic substances, natural resources, silicate compounds, geological and mineral samples.

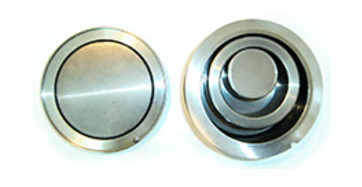

EQR-A-102 Steel milling jar 100ml
EQR-A-202 Steel milling jar 200ml
EQR-W-102 Tungsten Carbide milling jar 100ml
EQR-W-202 Tungsten Carbide milling jar 200ml
