Handheld XRF Catalytic Analyzer
Precision | Expertise | Innovation

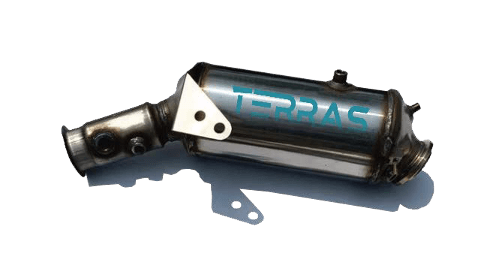

In three-way catalytic converters, precious metals like platinum exist as coatings on the device. Each waste catalytic converter contains approximately 1 to 3 grams of precious metal catalysts. Given the low mass ratio, detecting these elements requires an advanced elemental analyzer with superior sensitivity for low concentrations.

With the rise in vehicle usage, automobile exhaust has become a significant contributor to air pollution. To address this issue, Europe and the United States have enforced stringent emission regulations, continuously evolving to mitigate environmental damage caused by increasing vehicle numbers and worsening air quality. As a critical component of gasoline vehicle emission systems, three-way catalytic converters transform harmful gases like carbon monoxide (CO), hydrocarbons, and nitrogen oxides (NOx) into harmless substances such as carbon dioxide (CO2), nitrogen (N2), and water vapor (H2O), thus reducing greenhouse gas emissions.

However, stricter emission standards and the growing adoption of electric vehicles have led to the phasing out of many three-way catalytic converters. These devices contain valuable precious metals, including platinum (Pt), palladium (Pd), and rhodium (Rh), which have high recycling value due to their significant catalytic properties and high cost.

Handheld XRF (X-Ray Fluorescence) analyzers, like the EulerX 900 Mobile XRF, play a crucial role in this scenario. They provide rapid and precise analysis of precious metals in catalytic converters, enabling recyclers to efficiently sort and evaluate large quantities. The high accuracy of these devices minimizes errors, enhancing the recycling process and reducing potential losses due to misjudgments.

The EulerX 900 Handheld XRF Analyzer features a 50kV X-ray tube and smart filter technology, enabling optimized excitation conditions tailored for different metal elements, delivering precise and reliable results. Compact and user-friendly, the device allows for non-destructive testing of samples, making it adaptable to diverse operational needs.

ADVANTAGES OF EULERX 900 XRF

Exceptional Analytical Performance

EulerX 900 Handheld XRF is equipped with high-performance micro X-ray tubes and intelligent multi-position filters, optimized for detecting critical elements.

Fast and Accurate Measurements
Provides stable measurement results with a single click.

Simplified Yet Powerful Design

• Lightweight, compact, and ergonomically designed for easy handling.
• Tapered test head for efficient analysis of bends and corners.
• 5-inch color touchscreen with excellent visibility, even under strong outdoor lighting.
• User-friendly interface with advanced features such as a customizable brand library, element correction, humidity correction, and fingerprint spectrum analysis.

Durable and Cost-Effective

• Built to withstand rugged environments with IP54-rated dust and water resistance.
• Operates reliably in extreme temperatures (-10°C to 50°C), making it suitable for field applications.

Innovative Functionalities

• Terras PC software allows remote control of the device via WiFi or USB.
• View, share, and print reports easily, with options to include company logos and customized details.

SPECIFICATIONS OF The EulerX 900 CATALYTIC Handheld XRF

Excitation:

Model :	EulerX 900 CATALYTIC
	Ceramic packaged microfocus X-ray tube Ag target tube,50kV
Detector:	Optimized SDD detector with Graphene window
Filter:	Smart multi position filter design
Window:	Kapton with anti-puncture window design optional
Battery:	7.2V Li-ion battery，6800mAh
Display:	Capacitive touch color display
CPU	i.MX 8M Mini quad core 1.8GHz
Signal Processor	4096-pixel multi-channel detector/80 MHz ADC digital signal processor
Data storage:	100000+data storage
Data transfer:	WiFi、USB
Structure design	Unique TERUNI structure design, effectively increase the heat dissipation of the X ray tube
Radiation safety:	Safety Guard induction device, when there is no sample in the test area, the source will shut, providing maximum safety protection. Password-protected user security
Camera（optional):	Integrated CCD camera with autofocus lens for positioning and recording measuring point positions
Elements:	Pt, Rh, Pd
Environment Temp:	-10°C～50°C Humidity 0%～80%
Weight:	Approx. 1.5kg (3.3lbs) including battery
Dimensions:	L x W x H: 220mm*91mm*276mm
Software language:	English and other languages
Optional:	With the innovatively designed TERRAS mobile application, data can be viewed, shared, and printed in real time, and functions such as sample photo, GPS positioning, barcode scanning, and data archiving can be supported.
Special Accessories:	In addition to conventional accessories, optional: welding mask, hot surface adapter. It can detect high temperature surfaces and vibrating surfaces without contact.
